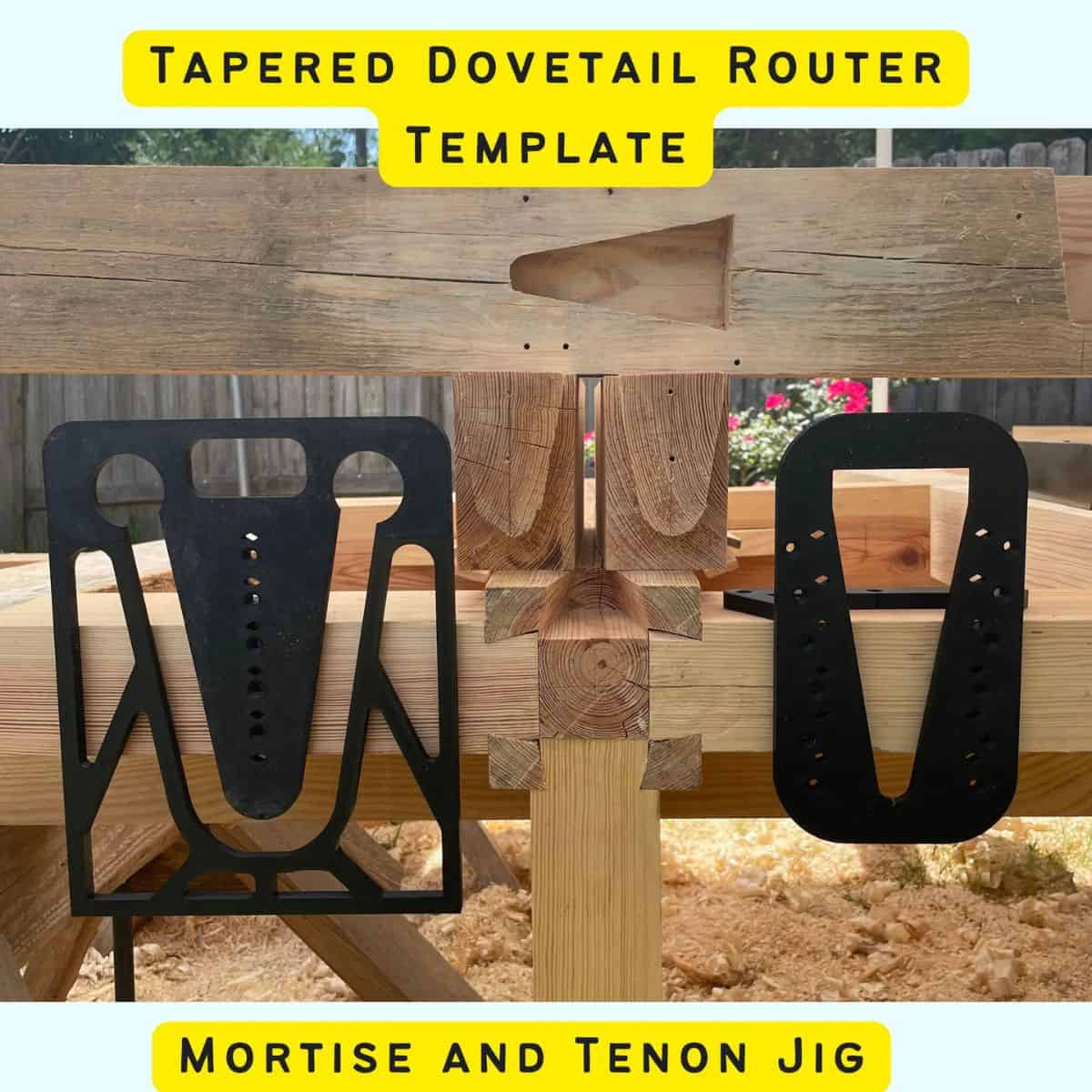

Large Tapered Dovetail Router Jig Template for Timber Framing
This router jig allows you to create perfectly sized tapered dovetail mortise and tenon joints. These joints can be used for joists, joining beams, and other 90 degree connections.
This post includes affiliate links. If you make a purchase using one of these links, Together Time Family will receive a commission at no additional cost to you.
This style of large dovetail joint is commonly used to build timber frame pergolas and pavilions. Now you can use the same joinery as the big timber framing companies without a CNC router!
*** Buy the jig on Etsy here ***
Learn more about this jig in our YouTube video: https://youtu.be/ABWCaQSZmVw

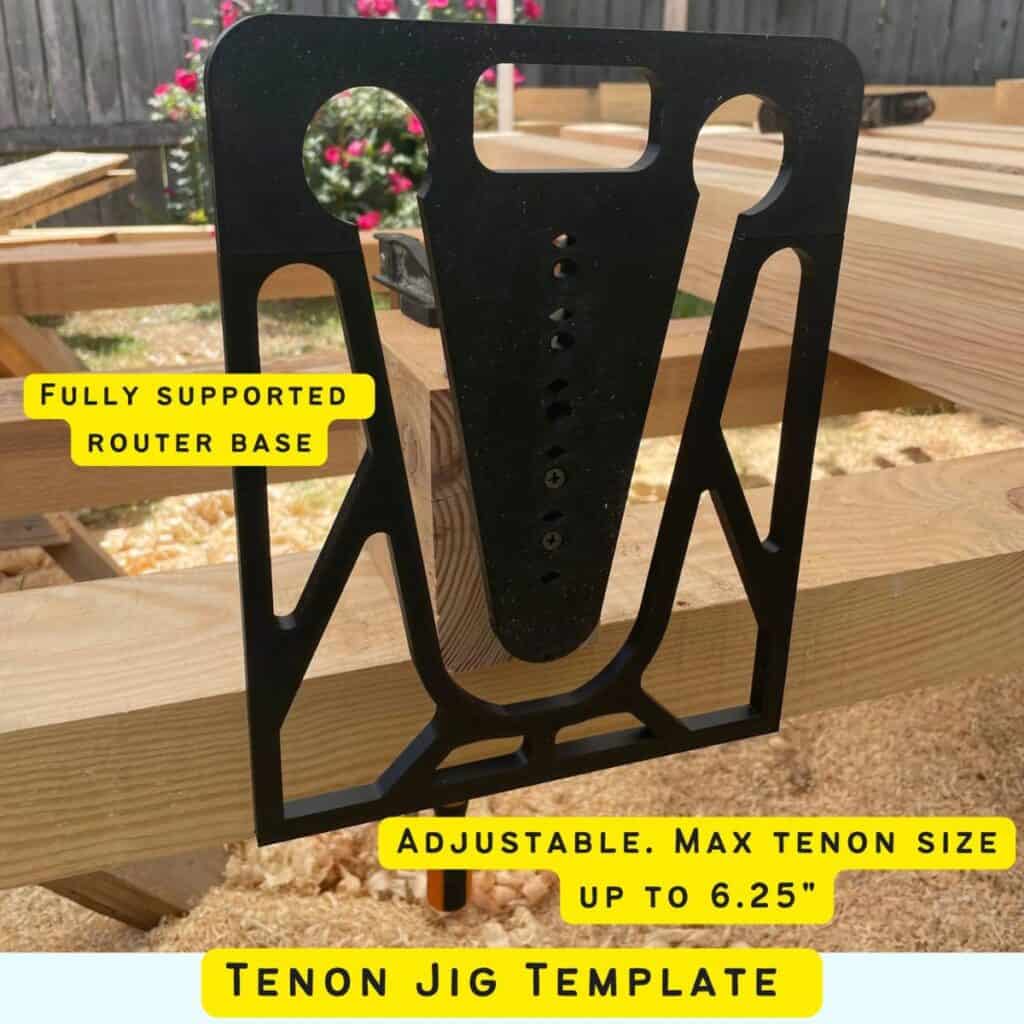

This dovetail tenon jig is designed for use with hand routers.

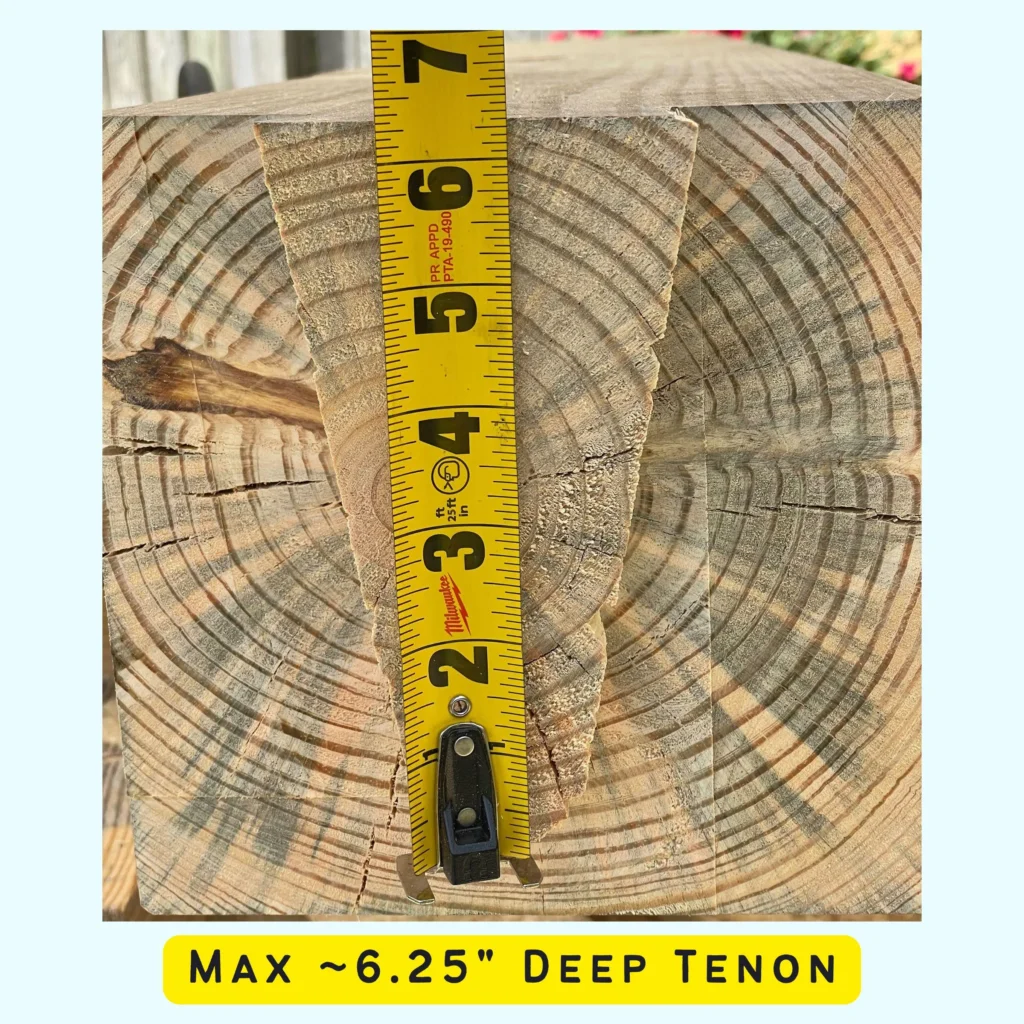

The tenon jig is adjustable to four different positions. You can create tenons that are 3.5″, 4.5″, 5.5″, or 6.5″ tall. If needed, shim the jig for the desired depth.
The tenons are tapered at a 10 degree angle.
The jig is fully supported when screwed into the work piece to prevent the router from tipping over.

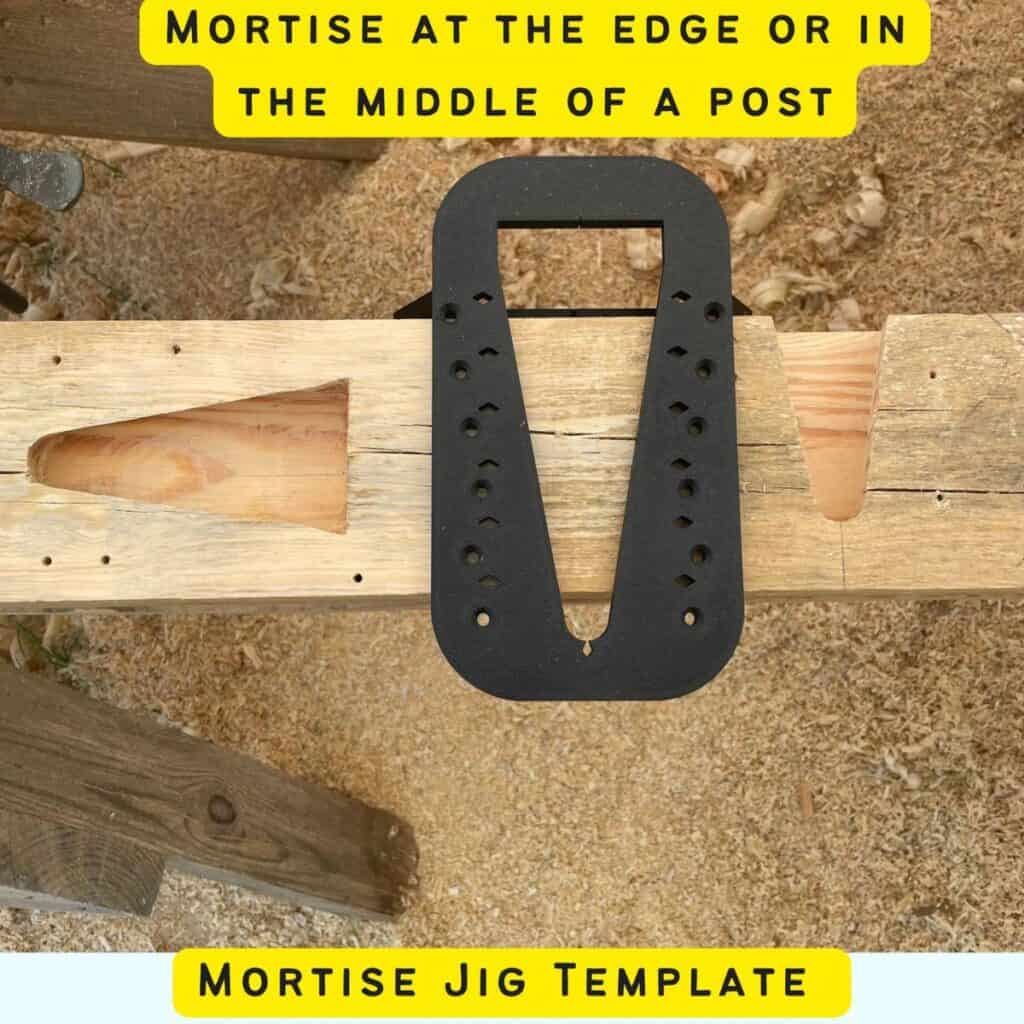

The mortise jig creates a pocket matched exactly to the tenon created. Use the scale on the back to match to the tenon.
*** Buy the jig on Etsy here ***

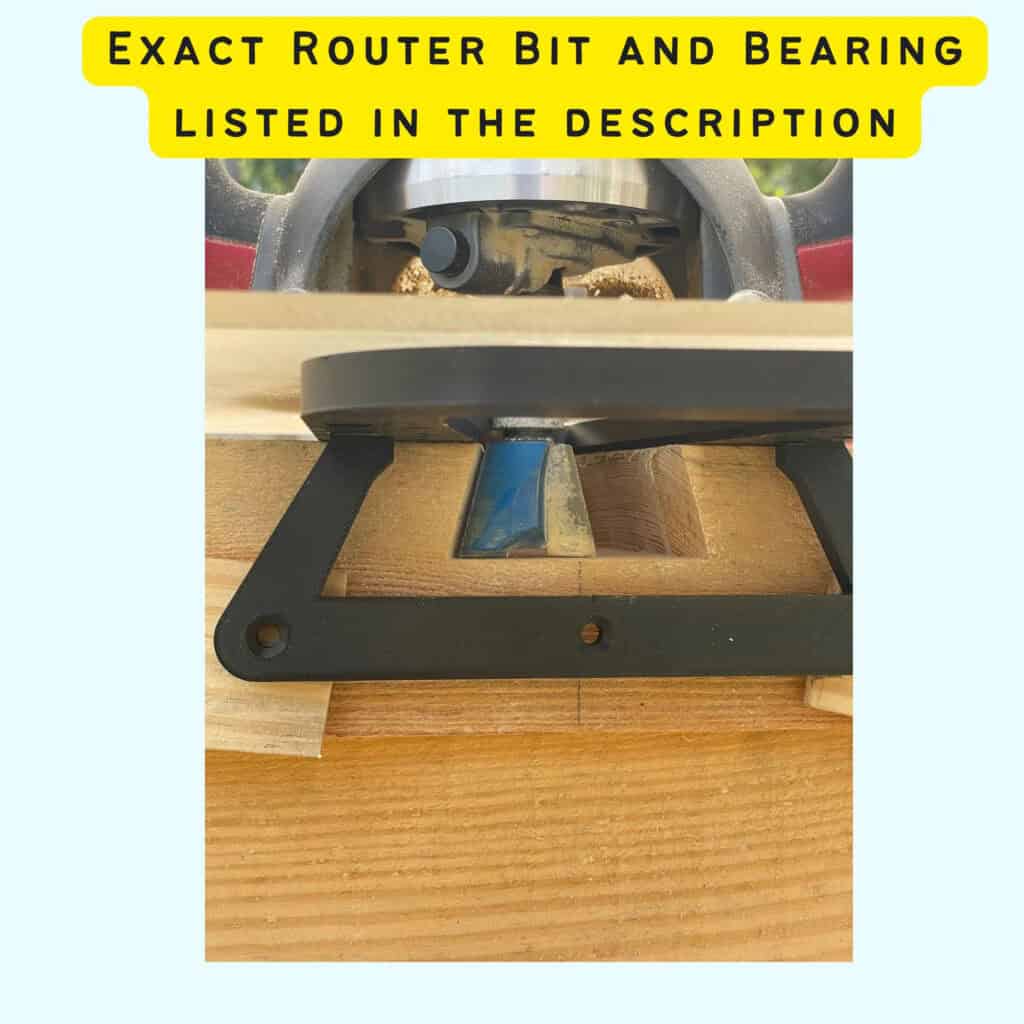

This jig requires using this 1.5″ dovetail router bit.
- Size - Cutting diameter: 1-1/2"; shank diameter: 1/2"; cutting depth: 1-1/6"; total length: 2-5/9"; dovetail angle: 14 degree
- Material - Made of premium tungsten carbide, the router bit provides high hardness and strength, good wear resistance, heat resistance for...
- Feature - Designed to create the interlocking "tails" and "pins" of a dovetail joint, providing strength, durability, and aesthetic appeal. Dovetail...
- Bearing Type: Bottom Mounted, Inner Diameter: 1/2”, Outer Diameter: 3/4”
- Replace or repair the damaged or lost router bit bearings.
- Contains bearings, set screws and allen wrench to fix any manufacturer's bits at a very affordable price.

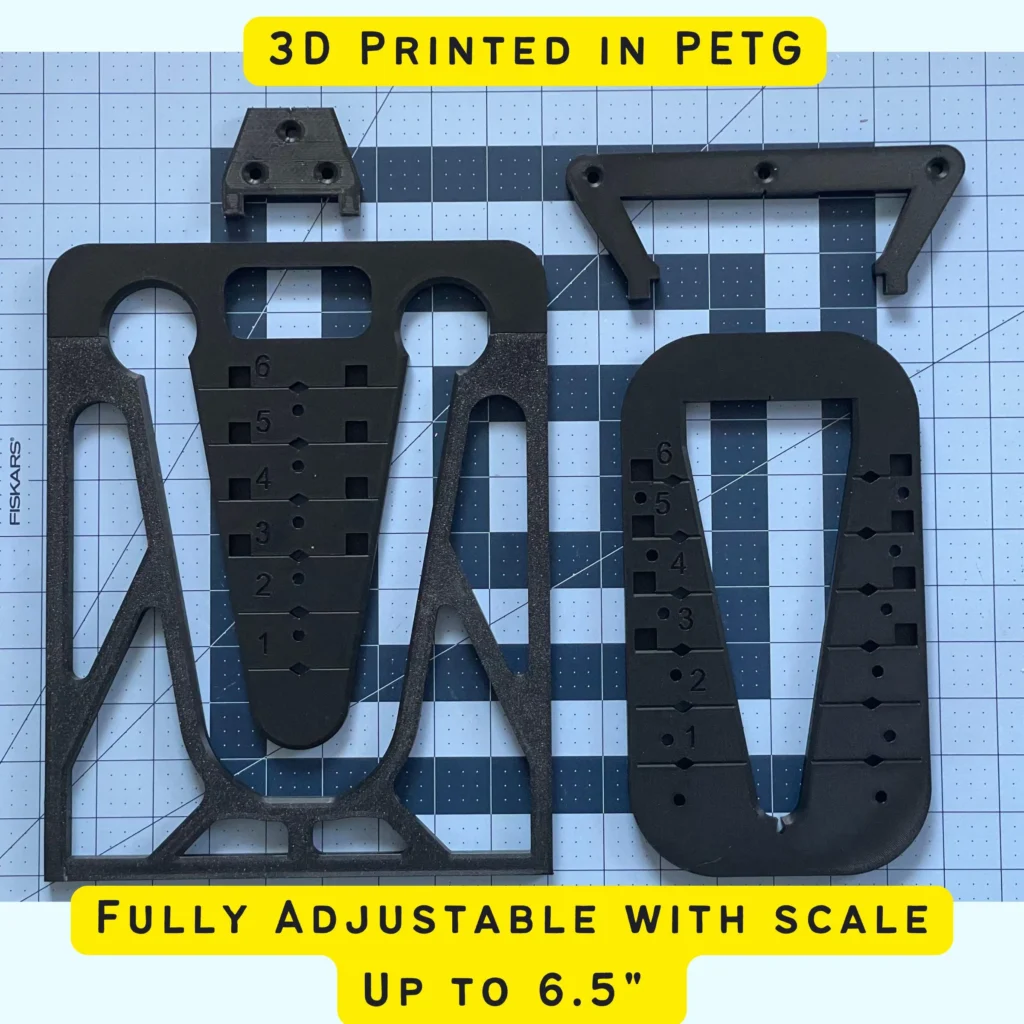

This dovetail router jig is made using PETG, which is a durable and UV stable material. However, it should not be exposed to excessive heat otherwise plastic deformation may occur.
This listing is only for the 3D printed router jig template. This listing does not include a router, router bits, or any other tool necessary to create the joints.
DISCLAIMER: This item is made using a 3D printer, a process that is additive manufacturing, printing layer by layer from bottom to top. This process can introduce small imperfections due to the nature of 3D printing, all items are quality checked before being shipped!
